    100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor

    Ask Lasest Price
    Brand Name : Luoshida
    Model Number : GQL-B61NS
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 3000PCS per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor

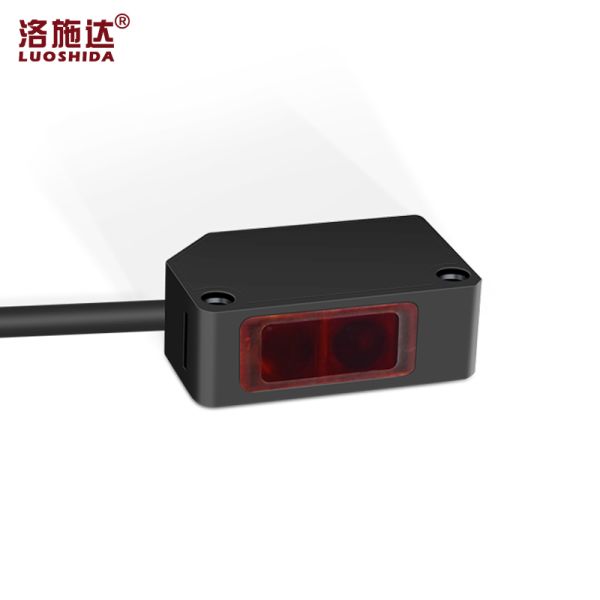

    GQL-B61NS Photoelectric mirror diffuse reflection sensor
    Size32*11*20mm
    Sensing distance50-300mm(Adjustable)
    Standard detection object200*200mm White card
    Light source650nm Red light
    Light spot sizeStandard 2mm
    Housing materialPC
    With LEDOrange LED/Green LED
    ModeNPN N.O./N.C.GQL-B61NS
    PNP N.O./N.C.GQL-B61PS
    Operating voltage12-24V DC
    No load curent<15mA
    Max.load current150mA
    Leakage current<0.01mA
    Voltage drop<1.5V
    Switching frequency100Hz
    Response time5ms
    Switching hysteresis<10%(Sr)
    Repeat accuracy<5%(Sr)
    Protection categoryIP55
    Operating temperature0℃…+55
    Temperature drift
    Shot circuit protectionYes
    Overload trip point190mA
    Connectionφ3.8 2M PVC cable,4*0.15mm²
    WeightAbout 40.0g
    CertificationCE RoHS


    100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor


    Company Profile
    100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor100% new factory price NPN PNP 300mm diffuse square pnp no 10-30vdc photoelectric proximity sensor

    FAQ

    Relevant information about the service :

    Shipping ways :
    Our normal shipping way is internation express, such as DHL,FEDEX, TNT and so on;
    When the gross weight is over 45kg, air trnasportation is also a good way for the customers to save some cost;
    Sea transportation is also can be considered, but only appointed agent accetpable.

    Payment term and delivery time :
    1. Generaly speaking, 30% deposit in advance, balance paid before the shipping;
    2. Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee;
    3. Delivery time:
    The sensors will be shipped out in 3 days when we receive the payment if we have stocks;
    If no stocks, the delivery time will be 7-10days when we received the PO or deposit.

    After-sales services :
    1. The warranty period is 12 months
    2. If we send the wrong parts to you, free replacement will be available
    3. As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
